Nightingale MPC Screen Shots

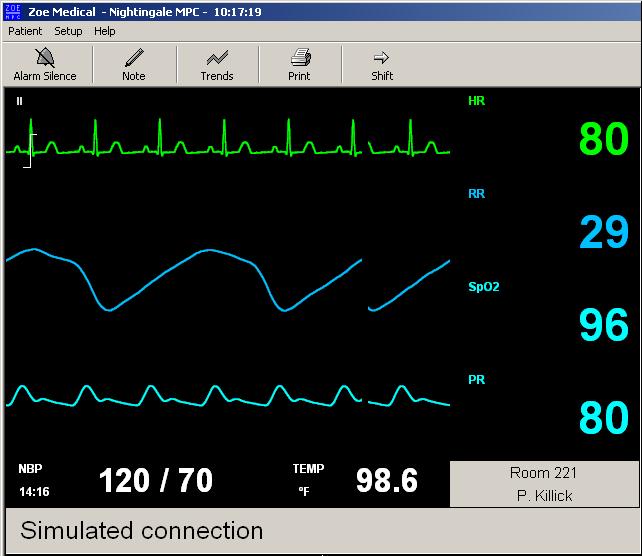

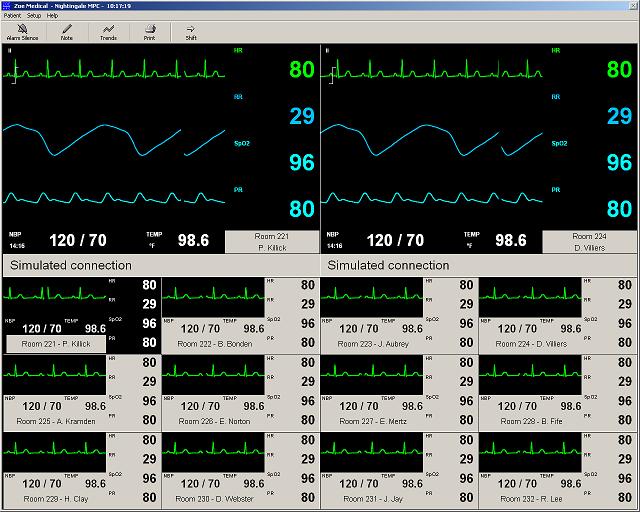

Main Screen - supports viewing of data from up to 64 patients



Large Views - layout and colors match PPM2 screen for easy interpretation of values.

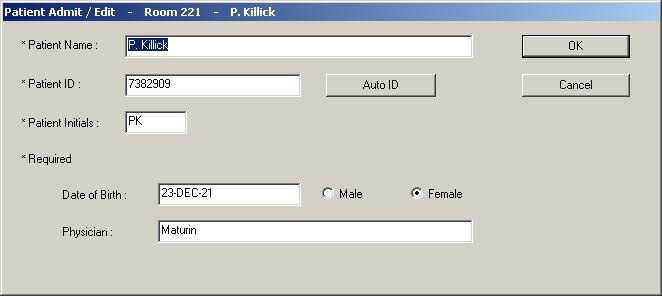

Patient Admit / Edit - easy entry of standard patient demographic information.

Auto ID allows quick admit of patients before all other demographics are available.

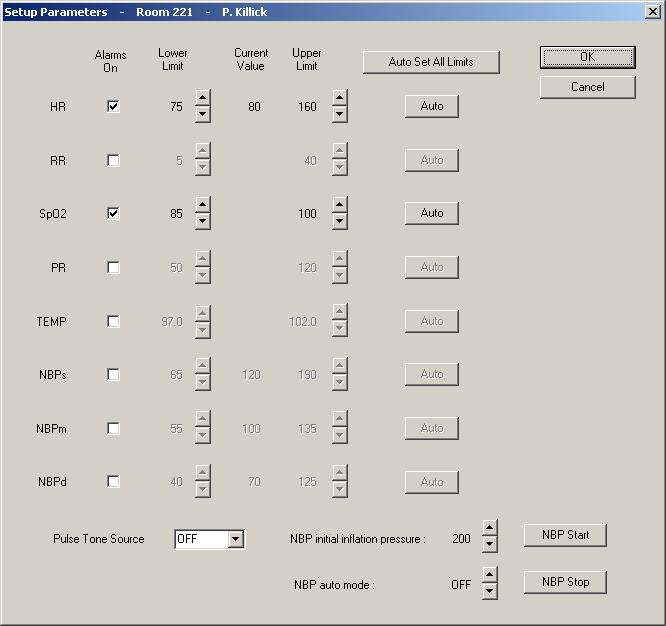

Setup Parameters - easy access to all parameter alarm settings, including ability to auto-set limits when patient is stable.

Remotely start and stop NBP measurements, and select pulse tone source as OFF, ECG, or SpO2.

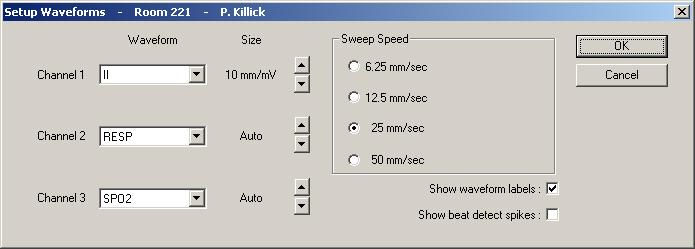

Setup Waveforms - easily setup how you want waveforms to appear.

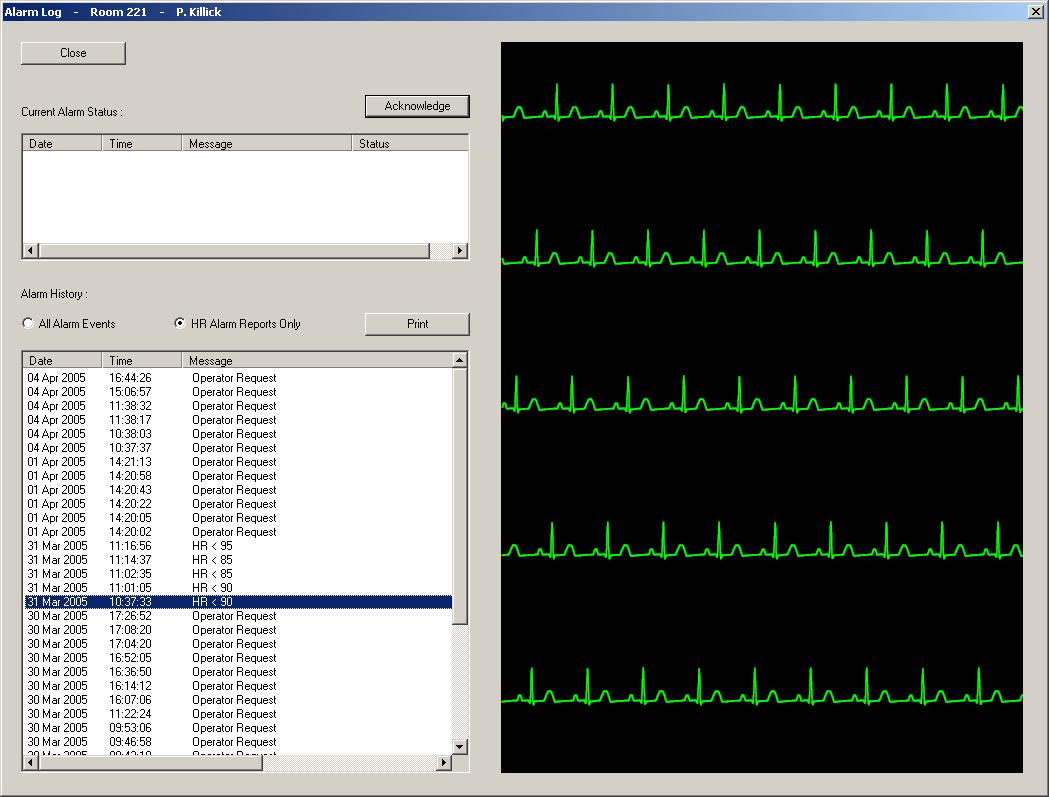

Alarm Log - System automatically stores 30 second ECG strip reports for all HR alarms.  Also, any operator-requested reports are saved to reprint later if needed.

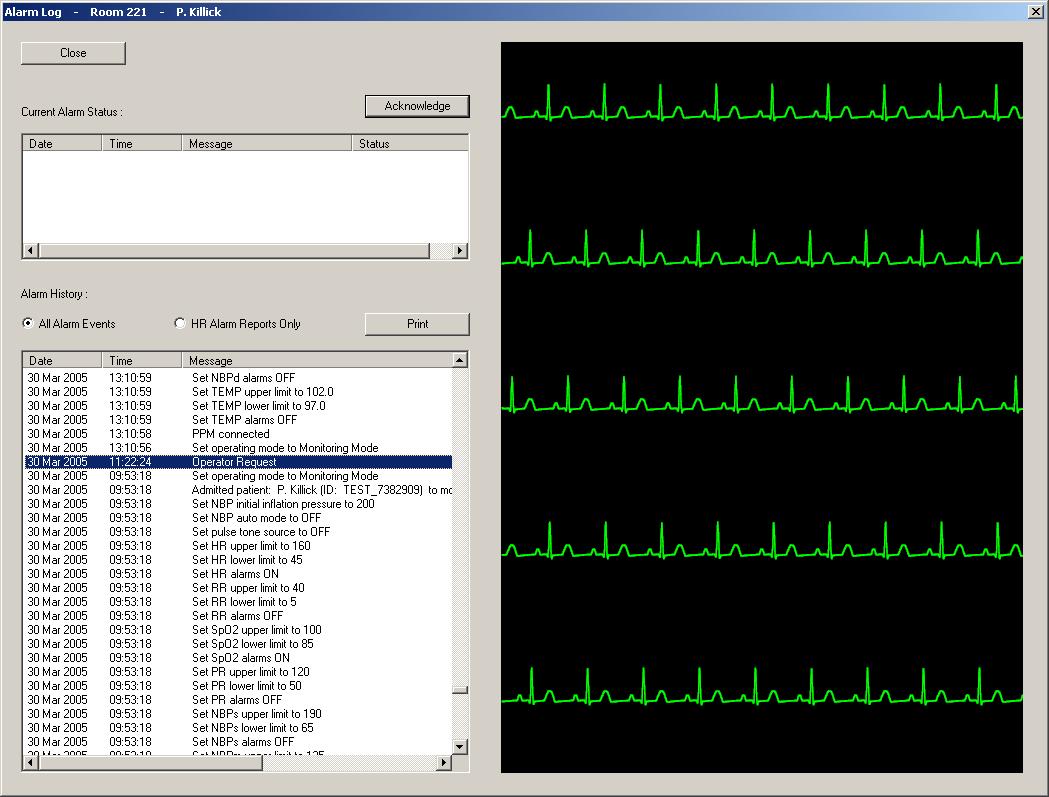

Alarm Log - The alarm log also supports a selection that shows all alarm-related events, such as patient transports, setting changes, and alarms.

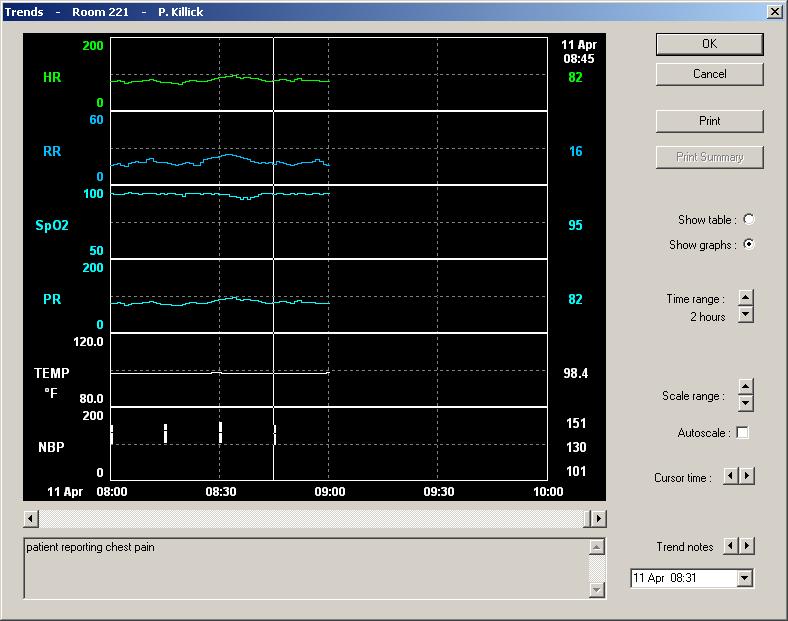

Trend Graph - easily scroll through up to last 3 weeks' worth of data, including user-entered notes.  Cursor and scaling options allow you to zoom in on areas of interest.

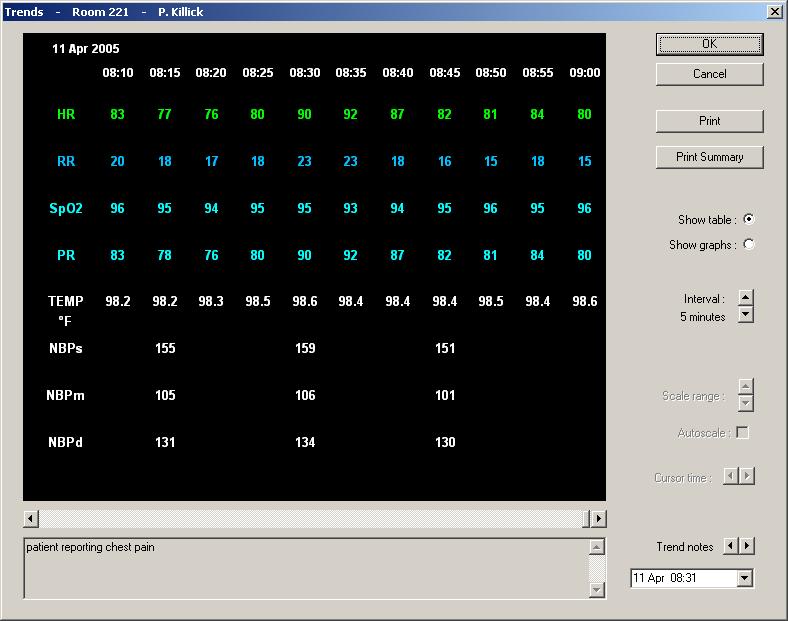

Trend Table - alternatively, view trend data in tabular form for easy transcription.  Trend printouts reproduce data exactly as shown on screen.

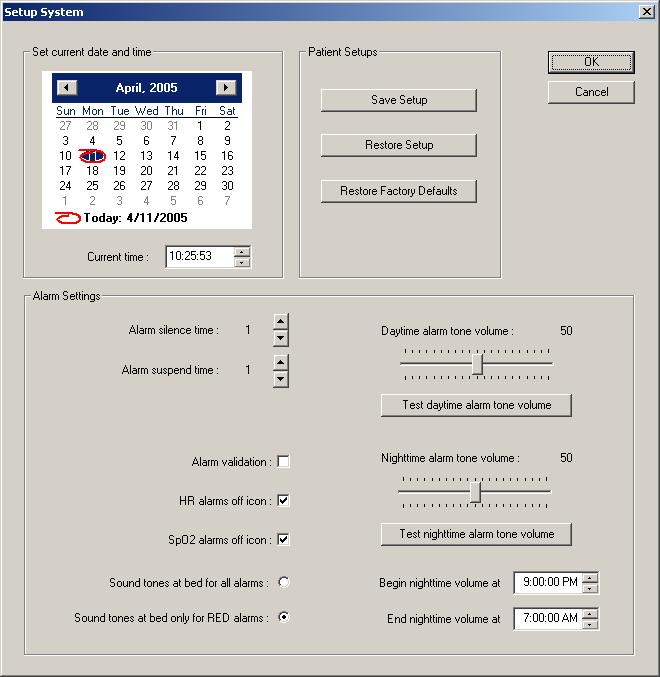

Setup System - under password control, designated users can configure various aspects of the system's behavior.

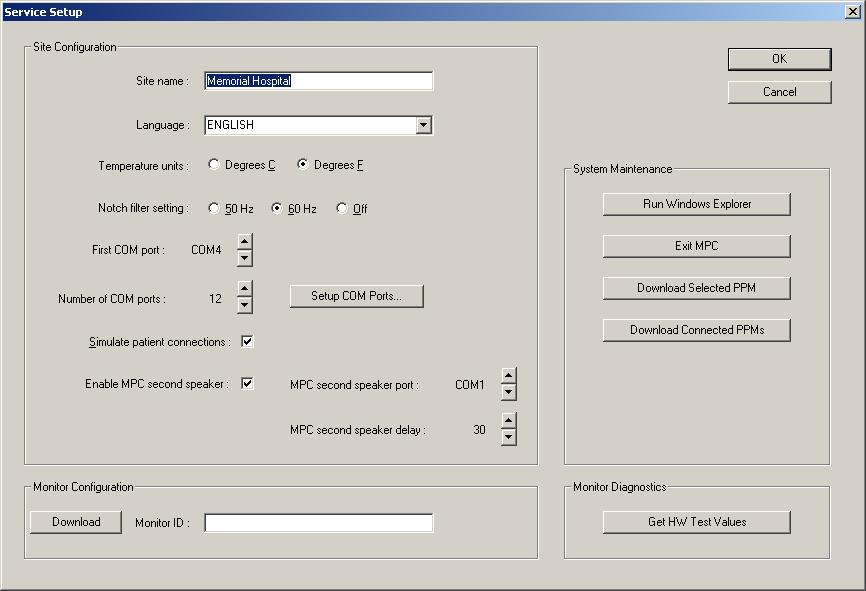

Service Setup - provides extensive configurability, allowing the MPC to conform to the specific needs of a given site.

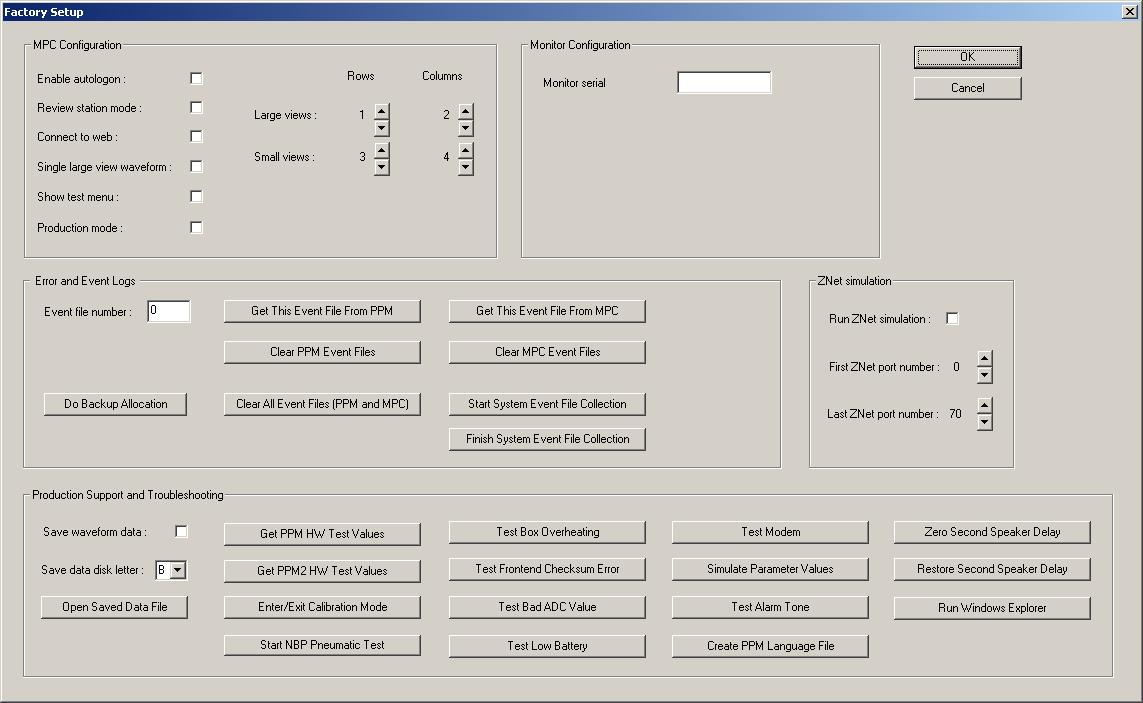

Factory Setup - the MPC software contains an extensive array of self-diagnostic functions used by factory technicians for validation testing of the MPC and the PPM2.
